XLPE Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multipair)
RE-2X(St)H 90°C / 300V
APPLICATION
The unarmoured LSZH sheathed cables are generally use for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| FlameRetardance(SingleVerticalWireTest) | EN60332-1-2;IEC60332-1-2;BSEN60332-1-2;VDE0482-332-1;NBNC30-004(cat.F1);NFC32-070-2.1(C2);CEI20-35/1-2;EN50265-2-1*;DINVDE0482-265-2-1* |
|---|---|
| ReducedFirePropagation(Vertically-mountedbundledwires&cabletest) | EN60332-3-24(cat.C);IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBNC30-004(cat.F2);NFC32-070-2.2(C1);CEI20-22/3-4;EN50266-2-4*;DINVDE0482-266-2-4 |
| HalogenFree | IEC60754-1;EN50267-2-1;DINVDE0482-267-2-1;CEI20-37/2-1;BS6425-1* |
| NoCorrosiveGasEmission | IEC60754-2;EN50267-2-2;DINVDE0482-267-2-2;CEI20-37/2-2;BS6425-2* |
| MinimumSmokeEmission | IEC61034-1&2;EN61034-1&2;DINVDE0482-1034-1&2;CEI20-37/3-1&2;EN50268-1&2*;BS7622-1&2* |
| NoToxicgases | NES02-713;NFC20-454 |
| SunlightResistance | UL1581section1200 |
| OilResistance | ICEAS-73-532** |
Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile
VOLTAGE RATING
300V

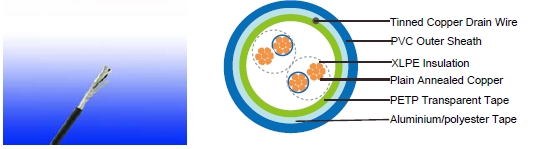

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: Extruded cross-linked XLPE compound, EN 50290. 2-29.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Binder tape: PETP transparent tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned
copper drain wire, 0.5mm²
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type
SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and
anti termite properties can be offered as option.
COLOUR CODE
Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
Outer Sheath: Black or blue for intrinsically safe systems
HYSICAL AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
ELECTRICAL PROPERTIES
| ConductorAreaSize | mm | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | ||
|---|---|---|---|---|---|---|---|---|
| Insulationthickness(nominal) | mm | 0.35 | 0.38 | 0.4 | 0.45 | 0.45 | ||
| Conductorresistance(20°C) | Ω/km | 36.7 | 25 | 18.5 | 14.2 | 12.3 | ||
| Insulationresistance(20°C) | MΩ.km(Min.) | 5000 | ||||||
| MutualCapacitance(1kHz) | pF/m(Max.) | |||||||
| ≤4pairs | 90 | 90 | 90 | 102 | 102 | |||
| allotherpairs | 75 | 75 | 75 | 85 | 85 | |||
| Capacitanceunbalance(1kHz) | pF/500m(Max.) | 500 | ||||||
| Inductance | mH/km(Max.) | 1 | ||||||
| L/R(ratio)(max.) | μH/Ω | 25 | 25 | 25 | 40 | 40 | ||
| OperatingvoltageUrms | V | 300 | ||||||
| TestVoltage | CoretoCore | V | 1500 | |||||
| CoretoScreen | V | 1500 | ||||||
CONSTRUCTION PARAMETERS
| Caledonian Cable Code | RE-2X(St)H | ||||
|---|---|---|---|---|---|
| No.of Pairsx2x Cross Section | Nominal Insulation Thickness | Nominal Outer Sheath Thickness | Nominal Overall Diameter | Approx. Weight | |
| No.x2xmm2 | mm | mm | mm | kg/km | |
| 0.5mm2,Multipair | |||||
| RE-2X(St)H2P0.5 | 2x2x0.5 | 0.35 | 0.9 | 7.6 | 66 |
| RE-2X(St)H4P0.5 | 4x2x0.5 | 0.35 | 0.9 | 8.8 | 98 |
| RE-2X(St)H5P0.5 | 5x2x0.5 | 0.35 | 1.0 | 9.8 | 112 |
| RE-2X(St)H6P0.5 | 6x2x0.5 | 0.35 | 1.0 | 10.6 | 133 |
| RE-2X(St)H8P0.5 | 8x2x0.5 | 0.35 | 1.0 | 11.3 | 161 |
| RE-2X(St)H10P0.5 | 10x2x0.5 | 0.35 | 1.1 | 12.9 | 200 |
| RE-2X(St)H12P0.5 | 12x2x0.5 | 0.35 | 1.1 | 13.5 | 242 |
| RE-2X(St)H16P0.5 | 16x2x0.5 | 0.35 | 1.1 | 15.2 | 288 |
| RE-2X(St)H20P0.5 | 20x2x0.5 | 0.35 | 1.2 | 16.9 | 376 |
| RE-2X(St)H24P0.5 | 24x2x0.5 | 0.35 | 1.2 | 18.3 | 426 |
| 0.75mm2,Multipair | |||||
| RE-2X(St)H2P0.75 | 2x2x0.75 | 0.38 | 0.9 | 8.5 | 87 |
| RE-2X(St)H4P0.75 | 3x2x0.75 | 0.38 | 1.0 | 10.0 | 122 |
| RE-2X(St)H5P0.75 | 4x2x0.75 | 0.38 | 1.0 | 10.9 | 154 |
| RE-2X(St)H6P0.75 | 5x2x0.75 | 0.38 | 1.0 | 11.8 | 174 |
| RE-2X(St)H8P0.75 | 8x2x0.75 | 0.38 | 1.1 | 12.8 | 213 |
| RE-2X(St)H10P0.75 | 10x2x0.75 | 0.38 | 1.1 | 14.5 | 266 |
| RE-2X(St)H12P0.75 | 12x2x0.75 | 0.38 | 1.1 | 15.1 | 304 |
| RE-2X(St)H16P0.75 | 16x2x0.75 | 0.38 | 1.2 | 17.3 | 398 |
| RE-2X(St)H20P0.75 | 20x2x0.75 | 0.38 | 1.3 | 19.2 | 478 |
| RE-2X(St)H24P0.75 | 24x2x0.75 | 0.38 | 1.3 | 20.8 | 559 |
| 1.0mm2,Multipair | |||||
| RE-2X(St)H2P1.0 | 2x2x1.0 | 0.4 | 0.9 | 9.2 | 101 |
| RE-2X(St)H4P1.0 | 3x2x1.0 | 0.4 | 1.0 | 10.9 | 157 |
| RE-2X(St)H5P1.0 | 4x2x1.0 | 0.4 | 1.0 | 11.9 | 194 |
| RE-2X(St)H6P1.0 | 5x2x1.0 | 0.4 | 1.0 | 13.0 | 223 |
| RE-2X(St)H8P1.0 | 8x2x1.0 | 0.4 | 1.1 | 14.0 | 272 |
| RE-2X(St)H10P1.0 | 10x2x1.0 | 0.4 | 1.1 | 15.9 | 334 |
| RE-2X(St)H12P1.0 | 12x2x1.0 | 0.4 | 1.2 | 16.8 | 390 |
| RE-2X(St)H16P1.0 | 16x2x1.0 | 0.4 | 1.2 | 19.0 | 511 |
| RE-2X(St)H20P1.0 | 20x2x1.0 | 0.4 | 1.3 | 21.1 | 617 |
| RE-2X(St)H24P1.0 | 24x2x1.0 | 0.4 | 1.4 | 23.1 | 749 |
| 1.3mm2,Multipair | |||||
| RE-2X(St)H2P1.3 | 2x2x1.3 | 0.45 | 1.0 | 10.4 | 124 |
| RE-2X(St)H4P1.3 | 3x2x1.3 | 0.45 | 1.0 | 12.0 | 184 |
| RE-2X(St)H5P1.3 | 4x2x1.3 | 0.45 | 1.1 | 13.4 | 226 |
| RE-2X(St)H6P1.3 | 5x2x1.3 | 0.45 | 1.1 | 14.6 | 289 |
| RE-2X(St)H8P1.3 | 8x2x1.3 | 0.45 | 1.2 | 15.7 | 337 |
| RE-2X(St)H10P1.3 | 10x2x1.3 | 0.45 | 1.2 | 17.9 | 411 |
| RE-2X(St)H12P1.3 | 12x2x1.3 | 0.45 | 1.3 | 18.9 | 495 |
| RE-2X(St)H16P1.3 | 16x2x1.3 | 0.45 | 1.3 | 21.4 | 651 |
| RE-2X(St)H20P1.3 | 20x2x1.3 | 0.45 | 1.4 | 23.8 | 772 |
| RE-2X(St)H24P1.3 | 24x2x1.3 | 0.45 | 1.5 | 25.9 | 933 |
| 1.5mm2,Multipair | |||||
| RE-2X(St)H2P1.5 | 2x2x1.5 | 0.45 | 1.0 | 10.8 | 139* |
| RE-2X(St)H4P1.5 | 3x2x1.5 | 0.45 | 1.1 | 12.7 | 214 |
| RE-2X(St)H5P1.5 | 4x2x1.5 | 0.45 | 1.1 | 14.0 | 259 |
| RE-2X(St)H6P1.5 | 5x2x1.5 | 0.45 | 1.2 | 15.2 | 305 |
| RE-2X(St)H8P1.5 | 8x2x1.5 | 0.45 | 1.2 | 16.4 | 385 |
| RE-2X(St)H10P1.5 | 10x2x1.5 | 0.45 | 1.3 | 18.8 | 460 |
| RE-2X(St)H12P1.5 | 12x2x1.5 | 0.45 | 1.3 | 19.7 | 558 |
| RE-2X(St)H16P1.5 | 16x2x1.5 | 0.45 | 1.4 | 22.5 | 725 |
| RE-2X(St)H20P1.5 | 20x2x1.5 | 0.45 | 1.5 | 25.0 | 881 |
| RE-2X(St)H24P1.5 | 24x2x1.5 | 0.45 | 1.5 | 27.1 | 147 |
Note : Other conductor sizes & core configurations are available upon request.
EN50288-7 Instrument Cables
