EN 50288-7 Satandard XLPE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multicore)
RE-2X(St)H 90??C / 500V
Application
EN 50288-7 multicore cables for transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral.
Recommended for use as fire protection messure for people and important material assets.
Flame Performance
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|---|---|
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |

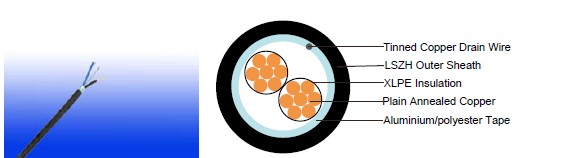

Construction
| Conductor | Annealed bare copper, stranded to IEC 60228 Class 2. |
|---|---|
| Insulation | Extruded cross-linked XLPE compound as per EN 50290-2-29. |
| Collective screen | Aluminium/polyester tape with tinned copper drain wire, 0.5mm2 |
| Outer sheath | LSZH compound as per EN 50290-2-27. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. |
Colour Code
Insulation: Black numbered
Outer Sheath: Black, blue for intrinsically safe systems
Mechanical
| Temperature Range During Operation (Fixed State) | -30??C ?C +90??C |
|---|---|
| Temperature Range During Installation (Mobile State) | -5??C ?C +50??C |
| Minimum Bending Radius | 7.5 X Overall Diameter |
| Sunlight Resistance | UL 1581 section 1200 |
| Oil Resistance | ICEA S-73-532(Test temperature +60??C duration 4h. Retention: min 60% of tensile strength/min.60% of elongation) |
Electrical Properties
| Conductor Area Size? | mm 2? | 0.5 | 0.75 | 1 | 1.3 | 1.5 | 2.5 |
|---|---|---|---|---|---|---|---|
| Insulation thickness (nominal)? | mm? | 0.55 | 0.55 | 0.55 | 0.6 | 0.6 | 0.7 |
| Conductor resistance (20??C)? | ??/km? | 36.7 | 25 | 18.5 | 14.2 | 12.3 | 7.4 |
| Insulation resistance (20??C)? | M??.km(Min.)? | 5000 | |||||
| Mutual Capacitance (1 kHz)? | pF/m(Max.)? | 115 | |||||
| Capacitance unbalance(1 kHz)? | pF/500 m (Max.)? | 500 | |||||
| L / R (ratio) (max.)? | ??H/??? | 25 | 25 | 25 | 40 | 40 | 60 |
| Operating voltage? | V? | 500 | |||||
| Test Voltage Urms? | Core to Core V? | 2000 | |||||
| Core to Screen? V? | 2000 | ||||||
Construction Parameters
| Caledonian Cable Code | RE-2X(St)H | ||||
|---|---|---|---|---|---|
| ?No. of Core x1xCross Section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Approx. Weight | |
No.x1xmm2
| mm |
mm |
mm |
kg/km |
| |
| 0.5mm2, Multicore | |||||
| RE-2X(St)H 2C0.5 | 2x1x0.5 | 0.55 | 0.9 | 6.2 | 47 |
| RE-2X(St)H 3C0.5 | 3x1x0.5 | 0.55 | 0.9 | 6.5 | 50 |
| RE-2X(St)H 4C0.5 | 4x1x0.5 | 0.55 | 0.9 | 7 | 60 |
| RE-2X(St)H 5C0.5 | 5x1x0.5 | 0.55 | 0.9 | 7.6 | 71 |
| RE-2X(St)H 8C0.5 | 8x1x0.5 | 0.55 | 1 | 9.1 | 95 |
| RE-2X(St)H 10C0.5 | 10x1x0.5 | 0.55 | 1 | 10.4 | 127 |
| RE-2X(St)H 12C0.5 | 12x1x0.5 | 0.55 | 1 | 10.7 | 151 |
| RE-2X(St)H 14C0.5 | 14x1x0.5 | 0.55 | 1 | 11.3 | 162 |
| RE-2X(St)H 16C0.5 | 16x1x0.5 | 0.55 | 1.1 | 11.8 | 180 |
| RE-2X(St)H 20C0.5 | 20x1x0.5 | 0.55 | 1.1 | 13.3 | 222 |
| RE-2X(St)H 24C0.5 | 24x1x0.5 | 0.55 | 1.1 | 14.7 | 274 |
| RE-2X(St)H 27C0.5 | 27x1x0.5 | 0.55 | 1.2 | 15 | 282 |
| RE-2X(St)H 30C0.5 | 30x1x0.5 | 0.55 | 1.2 | 15.7 | 318 |
| RE-2X(St)H 37C0.5 | 37x1x0.5 | 0.55 | 1.2 | 16.9 | 372 |
| RE-2X(St)H 40C0.5 | 40x1x0.5 | 0.55 | 1.2 | 17.6 | 372 |
| 0.75mm2, Multicore? | |||||
| RE-2X(St)H 2C0.75 | 2x1x0.75 | 0.55 | 0.9 | 6.5 | 51 |
| RE-2X(St)H 3C0.75 | 3x1x0.75 | 0.55 | 0.9 | 6.9 | 62 |
| RE-2X(St)H 4C0.75 | 4x1x0.75 | 0.55 | 0.9 | 7.4 | 74 |
| RE-2X(St)H 5C0.75 | 5x1x0.75 | 0.55 | 0.9 | 8.1 | 96 |
| RE-2X(St)H 8C0.75 | 8x1x0.75 | 0.55 | 1 | 9.7 | 126 |
| RE-2X(St)H 10C0.75 | 10x1x0.75 | 0.55 | 1 | 11.1 | 156 |
| RE-2X(St)H 12C0.75 | 12x1x0.75 | 0.55 | 1 | 11.5 | 183 |
| RE-2X(St)H 14C0.75 | 14x1x0.75 | 0.55 | 1.1 | 12.2 | 200 |
| RE-2X(St)H 16C0.75 | 16x1x0.75 | 0.55 | 1.1 | 12.9 | 224 |
| RE-2X(St)H 20C0.75 | 20x1x0.75 | 0.55 | 1.1 | 14.3 | 284 |
| RE-2X(St)H 24C0.75 | 24x1x0.75 | 0.55 | 1.2 | 16 | 324 |
| RE-2X(St)H 27C0.75 | 27x1x0.75 | 0.55 | 1.2 | 16.3 | 363 |
| RE-2X(St)H 30C0.75 | 30x1x0.75 | 0.55 | 1.2 | 16.9 | 396 |
| RE-2X(St)H 37C0.75 | 37x1x0.75 | 0.55 | 1.2 | 18.2 | 472 |
| RE-2X(St)H 40C0.75 | 40x1x0.75 | 0.55 | 1.3 | 19.1 | 514 |
| 1.0mm2, Multicore? | |||||
| RE-2X(St)H 2C1.0 | 2x1x1.0 | 0.55 | 0.9 | 6.9 | 61 |
| RE-2X(St)H 3C1.0 | 3x1x1.0 | 0.55 | 0.9 | 7.3 | 70 |
| RE-2X(St)H 4C1.0 | 4x1x1.0 | 0.55 | 0.9 | 7.9 | 85 |
| RE-2X(St)H 5C1.0 | 5x1x1.0 | 0.55 | 0.9 | 8.6 | 109 |
| RE-2X(St)H 8C1.0 | 8x1x1.0 | 0.55 | 1 | 10.3 | 157 |
| RE-2X(St)H 10C1.0 | 10x1x1.0 | 0.55 | 1 | 11.9 | 193 |
| RE-2X(St)H 12C1.0 | 12x1x1.0 | 0.55 | 1 | 12.2 | 214 |
| RE-2X(St)H 14C1.0 | 14x1x1.0 | 0.55 | 1.1 | 13 | 243 |
| RE-2X(St)H 16C1.0 | 16x1x1.0 | 0.55 | 1.1 | 13.7 | 280 |
| RE-2X(St)H 20C1.0 | 20x1x1.0 | 0.55 | 1.1 | 15.2 | 336 |
| RE-2X(St)H 24C1.0 | 24x1x1.0 | 0.55 | 1.2 | 17 | 414 |
| RE-2X(St)H 27C1.0 | 27x1x1.0 | 0.55 | 1.2 | 17.4 | 443 |
| RE-2X(St)H 30C1.0 | 30x1x1.0 | 0.55 | 1.2 | 18 | 484 |
| RE-2X(St)H 37C1.0 | 37x1x1.0 | 0.55 | 1.2 | 19.6 | 590 |
| RE-2X(St)H 40C1.0 | 40x1x1.0 | 0.55 | 1.3 | 20.4 | 631 |
| 1.3mm2, Multicore? | |||||
| RE-2X(St)H 2C1.3 | 2x1x1.3 | 0.6 | 0.9 | 7.4 | 69 |
| RE-2X(St)H 3C1.3 | 3x1x1.3 | 0.6 | 0.9 | 7.9 | 83 |
| RE-2X(St)H 4C1.3 | 4x1x1.3 | 0.6 | 0.9 | 8.5 | 105 |
| RE-2X(St)H 5C1.3 | 5x1x1.3 | 0.6 | 1 | 9.5 | 135 |
| RE-2X(St)H 8C1.3 | 8x1x1.3 | 0.6 | 1 | 11.2 | 186 |
| RE-2X(St)H 10C1.3 | 10x1x1.3 | 0.6 | 1.1 | 13.2 | 228 |
| RE-2X(St)H 12C1.3 | 12x1x1.3 | 0.6 | 1.1 | 13.6 | 269 |
| RE-2X(St)H 14C1.3 | 14x1x1.3 | 0.6 | 1.1 | 14.3 | 305 |
| RE-2X(St)H 16C1.3 | 16x1x1.3 | 0.6 | 1.1 | 15 | 351 |
| RE-2X(St)H 20C1.3 | 20x1x1.3 | 0.6 | 1.2 | 16.9 | 423 |
| RE-2X(St)H 24C1.3 | 24x1x1.3 | 0.6 | 1.2 | 18.7 | 507 |
| RE-2X(St)H 27C1.3 | 27x1x1.3 | 0.6 | 1.3 | 19.3 | 558 |
| RE-2X(St)H 30C1.3 | 30x1x1.3 | 0.6 | 1.3 | 20 | 611 |
| RE-2X(St)H 37C1.3 | 37x1x1.3 | 0.6 | 1.3 | 21.6 | 743 |
| RE-2X(St)H 40C1.3 | 40x1x1.3 | 0.6 | 1.4 | 22.7 | 796 |
| 1.5mm2, Multicore? | |||||
| RE-2X(St)H 2C1.5 | 2x1x1.5 | 0.6 | 0.9 | 7.7 | 78 |
| RE-2X(St)H 3C1.5 | 3x1x1.5 | 0.6 | 0.9 | 8.1 | 98 |
| RE-2X(St)H 4C1.5 | 4x1x1.5 | 0.6 | 0.9 | 8.8 | 120 |
| RE-2X(St)H 5C1.5 | 5x1x1.5 | 0.6 | 1 | 9.8 | 153 |
| RE-2X(St)H 8C1.5 | 8x1x1.5 | 0.6 | 1 | 11.6 | 218 |
| RE-2X(St)H 10C1.5 | 10x1x1.5 | 0.6 | 1.1 | 13.7 | 268 |
| RE-2X(St)H 12C1.5 | 12x1x1.5 | 0.6 | 1.1 | 14.1 | 315 |
| RE-2X(St)H 14C1.5 | 14x1x1.5 | 0.6 | 1.1 | 14.8 | 341 |
| RE-2X(St)H 16C1.5 | 16x1x1.5 | 0.6 | 1.1 | 15.6 | 392 |
| RE-2X(St)H 20C1.5 | 20x1x1.5 | 0.6 | 1.2 | 17.6 | 484 |
| RE-2X(St)H 24C1.5 | 24x1x1.5 | 0.6 | 1.3 | 19.6 | 579 |
| RE-2X(St)H 27C1.5 | 27x1x1.5 | 0.6 | 1.3 | 20.1 | 626 |
| RE-2X(St)H 30C1.5 | 30x1x1.5 | 0.6 | 1.3 | 20.8 | 685 |
| RE-2X(St)H 37C1.5 | 37x1x1.5 | 0.6 | 1.4 | 22.6 | 834 |
| RE-2X(St)H 40C1.5 | 40x1x1.5 | 0.6 | 1.4 | 23.6 | 898 |
| 2.5mm2, Multicore? | |||||
| RE-2X(St)H 2C2.5 | 2x1x2.5 | 0.7 | 0.9 | 8.9 | 111 |
| RE-2X(St)H 3C2.5 | 3x1x2.5 | 0.7 | 1 | 9.7 | 132 |
| RE-2X(St)H 4C2.5 | 4x1x2.5 | 0.7 | 1 | 10.5 | 169 |
| RE-2X(St)H 5C2.5 | 5x1x2.5 | 0.7 | 1 | 11.9 | 209 |
| RE-2X(St)H 8C2.5 | 8x1x2.5 | 0.7 | 1.1 | 13.9 | 321 |
| RE-2X(St)H 10C2.5 | 10x1x2.5 | 0.7 | 1.2 | 16.3 | 386 |
| RE-2X(St)H 12C2.5 | 12x1x2.5 | 0.7 | 1.2 | 16.9 | 447 |
| RE-2X(St)H 14C2.5 | 14x1x2.5 | 0.7 | 1.2 | 17.7 | 509 |
| RE-2X(St)H 16C2.5 | 16x1x2.5 | 0.7 | 1.3 | 18.9 | 585 |
| RE-2X(St)H 20C2.5 | 20x1x2.5 | 0.7 | 1.3 | 21.1 | 712 |
| RE-2X(St)H 24C2.5 | 24x1x2.5 | 0.7 | 1.4 | 23.6 | 855 |
| RE-2X(St)H 27C2.5 | 27x1x2.5 | 0.7 | 1.4 | 24.1 | 956 |
| RE-2X(St)H 30C2.5 | 30x1x2.5 | 0.7 | 1.5 | 25.2 | 1049 |
| RE-2X(St)H 37C2.5 | 37x1x2.5 | 0.7 | 1.5 | 27.2 | 1277 |
| RE-2X(St)H 40C2.5 | 40x1x2.5 | 0.7 | 1.6 | 28.5 | 1370 |
