MRE-3GCH 150/250V HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair)
Applications
MRE-3GCH 150/250V HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair) are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- DIN 89159/98
- IEC 60092-351/375/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

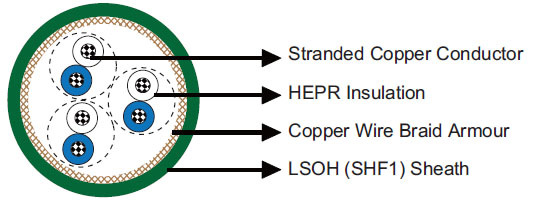

Construction
| Conductors |
Stranded copper conductor. |
| Insulation |
HEPR. |
| Cabling Element |
Pair. |
| Armour |
Copper wire braid. |
| Outer Sheath |
LSOH (SHF1). |
Core Identification
| Pair |
White/blue with printed pair number and core number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6??OD |
| Temperature Range |
-30?? ~ +75?? |
Dimensions and Weight
| Part No. |
Construction No. of elements??No. of cores in element??Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm2 |
mm |
mm |
mm |
kg/km |
| MRE-3GCH-1P0.75 |
1??2??0.75 |
0.5 |
1.2 |
8.5 |
90 |
| MRE-3GCH-2P0.75 |
2??2??0.75* |
0.5 |
1.3 |
9.5 |
130 |
| MRE-3GCH-4P0.75 |
4??2??0.75 |
0.5 |
1.4 |
13.0 |
230 |
| MRE-3GCH-7P0.75 |
7??2??0.75 |
0.5 |
1.8 |
15.5 |
340 |
| MRE-3GCH-10P0.75 |
10??2??0.75 |
0.5 |
1.9 |
18.5 |
470 |
| MRE-3GCH-14P0.75 |
14??2??0.75 |
0.5 |
2.0 |
21.0 |
610 |
| MRE-3GCH-19P0.75 |
19??2??0.75 |
0.5 |
2.1 |
23.5 |
770 |
| MRE-3GCH-24P0.75 |
24??2??0.75 |
0.5 |
2.2 |
26.5 |
950 |
*: 2 pairs are assembled as a quad.
