S13 BU(i) 250V

Applications

NEK606 standard S13 BU(i) 250V cables are fire resistant, flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.

Standards

• IEC 60092-376
• IEC 60092-351
• IEC 60092-359
• IEC 60331-21
• IEC 60332-1
• IEC 60332-3-22
• IEC 60754-1,2
• IEC 61034-1,2
• NEK 606:2004

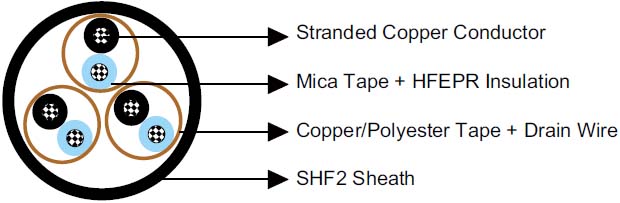

Construction



Conductors	Circular tinned annealed stranded copper wire to IEC 60228 class 2.
Insulation	Mica tape + Halogen free EPR compound.
Twinning	Colour coded cores twisted together.
Individual Shielding	Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Outer Sheath	Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).

Electrical Characteristics

Nominal Cross Section Area	mm2	0.75	1.0	1.5	2.5
Nominal Conductor Diameter	mm	1.1	1.3	1.6	2.0
Maximum Resistant@20??	??/km	26.3	19.3	12.9	8.02
Mutual Capacitance	nF/km	85	95	100	110
Nominal Inductance@1KHz	MH/km	0.731	0.691	0.673	0.629
Maximum L/R@1KHz	??H/??	20	25	35	55
Operating Voltage	V	250	250	250	250

Mechanical and Thermal Properties

Bending Radius	8??OD (during installation)
	6??OD (fixed installed)
Temperature Range	-20?? ~ +90??

Dimensions and Weight

Construction No. of elements??No. of cores in element??Cross section(mm2)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Nominal Overall Diameter (mm)	Nominal Weight (kg/km)
1??2??0.75	0.6	1.0	8.2	105
2??2??0.75	0.6	1.2	10.5	205
4??2??0.75	0.6	1.2	13.2	290
7??2??0.75	0.6	1.4	16.0	445
8??2??0.75	0.6	1.4	17.3	495
12??2??0.75	0.6	1.6	21.1	705
16??2??0.75	0.6	1.7	23.5	915
19??2??0.75	0.6	1.8	24.8	1035
24??2??0.75	0.6	1.9	28.6	1320
32??2??0.75	0.6	2.0	31.7	1670
1??3??0.75	0.6	1.0	8.6	120
2??3??0.75	0.6	1.2	12.0	205
3??3??0.75	0.6	1.2	13.8	300
4??3??0.75	0.6	1.3	15.1	365
7??3??0.75	0.6	1.5	18.3	560
8??3??0.75	0.6	1.5	19.5	650
12??3??0.75	0.6	1.7	24.4	915
16??3??0.75	0.6	1.8	27.3	1185
19??3??0.75	0.6	1.9	29.0	1360
24??3??0.75	0.6	2.1	33.7	1750
1??2??1.0	0.6	1.0	8.6	125
2??2??1.0	0.6	1.2	11.1	240
4??2??1.0	0.6	1.3	14.0	345
7??2??1.0	0.6	1.5	16.9	525
8??2??1.0	0.6	1.5	18.5	600
12??2??1.0	0.6	1.6	22.3	840
16??2??1.0	0.6	1.6	24.9	1095
19??2??1.0	0.6	1.8	26.5	1255
24??2??1.0	0.6	1.9	30.5	1605
32??2??1.0	0.6	2.0	33.8	2030
1??3??1.0	0.6	1.0	9.1	140
3??3??1.0	0.6	1.3	14.7	360
4??3??1.0	0.6	1.3	16.1	440
7??3??1.0	0.6	1.6	19.7	695
12??3??1.0	0.6	1.7	26.0	1115
16??3??1.0	0.6	1.8	29.2	1455
19??3??1.0	0.6	1.9	31.0	1675
24??3??1.0	0.6	2.1	36.1	2145
1??2??1.5	0.7	1.0	9.6	155
2??2??1.5	0.7	1.3	12.6	310
4??2??1.5	0.7	1.4	16.1	450
7??2??1.5	0.7	1.6	19.4	690
8??2??1.5	0.7	1.6	21.3	780
12??2??1.5	0.7	1.7	25.7	1100
16??2??1.5	0.7	1.9	28.9	1450
19??2??1.5	0.7	2.0	30.5	1645
24??2??1.5	0.7	2.2	35.3	2115
32??2??1.5	0.7	2.3	39.1	2680
1??3??1.5	0.7	1.1	10.1	175
2??3??1.5	0.7	1.3	14.5	320
3??3??1.5	0.7	1.3	16.8	470
4??3??1.5	0.7	1.4	18.4	580
7??3??1.5	0.7	1.7	22.6	910
8??3??1.5	0.7	1.7	23.5	1030
12??3??1.5	0.7	1.9	30.0	1475
16??3??1.5	0.7	2.0	33.6	1925
19??3??1.5	0.7	2.1	35.7	2210
24??3??1.5	0.7	2.4	41.7	2855
1??2??2.5	0.7	1.1	10.5	190
1??3??2.5	0.7	1.3	11.0	220
